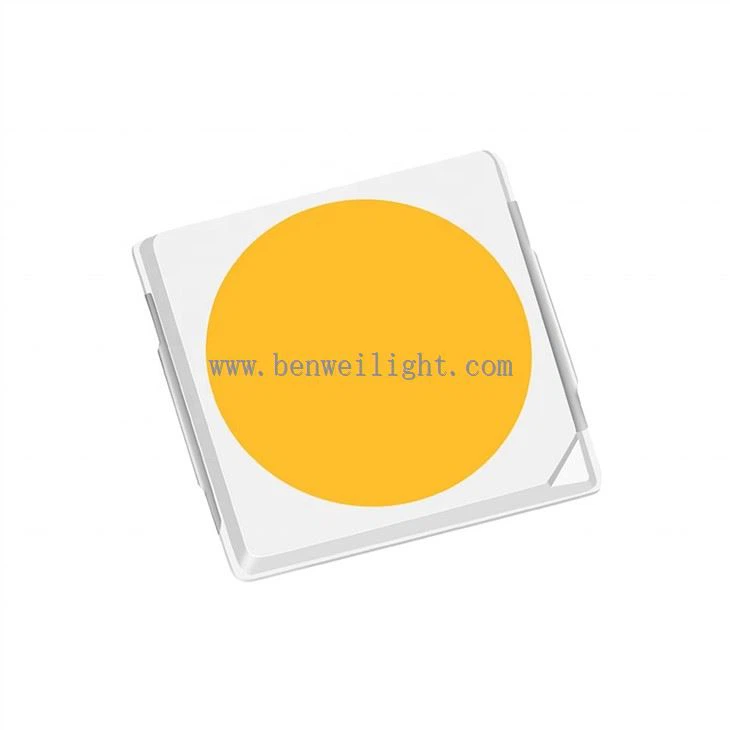

Led Smd 3030 3v 1w
Prednja struja 350mA 150mA 100mA
Indeks prikaza boja: RA80, RA90, RA93, RA95 plus, RA98
Visoka svjetlosna efikasnost: 220 LM/W plus
Pošaljite upit
Uvod u proizvod
led smd 3030 3v 1w
Karakteristike proizvoda:
Napon naprijed 3V 6V 9V Dostupan
Prednja struja 350mA 150mA 100mA
Indeks prikaza boja: RA80, RA90, RA93, RA95 plus, RA98
Visoka svjetlosna efikasnost: 220 LM/W plus
CCT opseg: 1600-1800K, 1800-2000K, 2000-2200K, 2200-2400K, 3000-10000K
Boja svetla: crvena, zelena, plava, žuta, UV, IR...
Puni spektar 380-850nm
Certifikat: LM-80, RoHS
Specifikacije led smd 3030 3v 1w:
| ime proizvoda | 1W EMC 3030 SMD LED | Model proizvoda | HQS{0}}EW420150R8 |
| Power Dissipation | 1.05W | Indeks prikazivanja boja | 80 |
| Forward Voltage | 2.8-3.4V | Ugao gledanja | 120 stepeni |
| Forward Current | 350-500mA | Radna temperatura | -40~ plus 60 stepeni |
| Luminous Flux | 140-150LM | Temperatura skladištenja | -40~ plus 85 stepeni |
| Temperatura boje | 4000-4500K | Temperatura lemljenja | 260 stepeni |
| 3030 SMD LED SERIJA SPECIFIKACIJA | ||||||
| ime proizvoda | Light Color | CCT/talasna dužina | voltaža | Current | Lumen | Napomena |
| 3030 LED | Zlatno žuta | 1800-2000K | 3/6/9V | 350/175/100mA | 120-150LM | CRI80,90 |
| 3030 LED | Bijelo | 3000-10000K | 3/6/9V | 350/175/100mA | 120-180LM | CRI80,90,96 plus |
| 3030 UV LED | UV | 365-370nm | 3/6/9V | 350/175/100mA | / | Epileds Chip |
| 3030 UV LED | UV | 390-400nm | 3/6/9V | 350/175/100mA | / | Epileds Chip |
| 3030 PLAVA LED | Plava | 440-470nm | 3/6/9V | 350/175/100mA | 12-20LM | Epileds Chip |
| 3030 Zelena LED | Zeleno | 520-530nm | 3/6/9V | 350/175/100mA | 70-100LM | Epileds Chip |
| 3030 Amber LED | Žuta/jantarna | 590-610nm | 2/4/6V | 350/175/100mA | 20-25LM | Epileds Chip |
| 3030 Crvena LED | Crveni | 620-630nm | 2/4/6V | 350/175/100mA | 30-35LM | Epileds Chip |
| 3030 Far Red | Far Red | 660-665nm | 2/4/6V | 350/175/100mA | 12-15LM | Epileds Chip |
| 3030 IR LED | IR | 730-750nm | 2/4/6V | 350/175/100mA | / | Epileds Chip |
| 3030 IR LED | IR | 850nm | 2/4/6V | 350/175/100mA | / | Epileds Chip |
| 3030 PC plava | Phosphor Blue | 450-470nm | 3/6/9V | 350/175/100mA | 15-30LM | Prilagođeni WD, WP |
| 3030 PC Green | Phosphor Green | 510-530nm | 3/6/9V | 350/175/100mA | 140-200LM | Prilagođeni WD, WP |
| 3030 PC boja | Phosphor Amber/Red | 600-630nm | 3/6/9V | 350/175/100mA | 50-60LM | Prilagođeni WD, WP |
